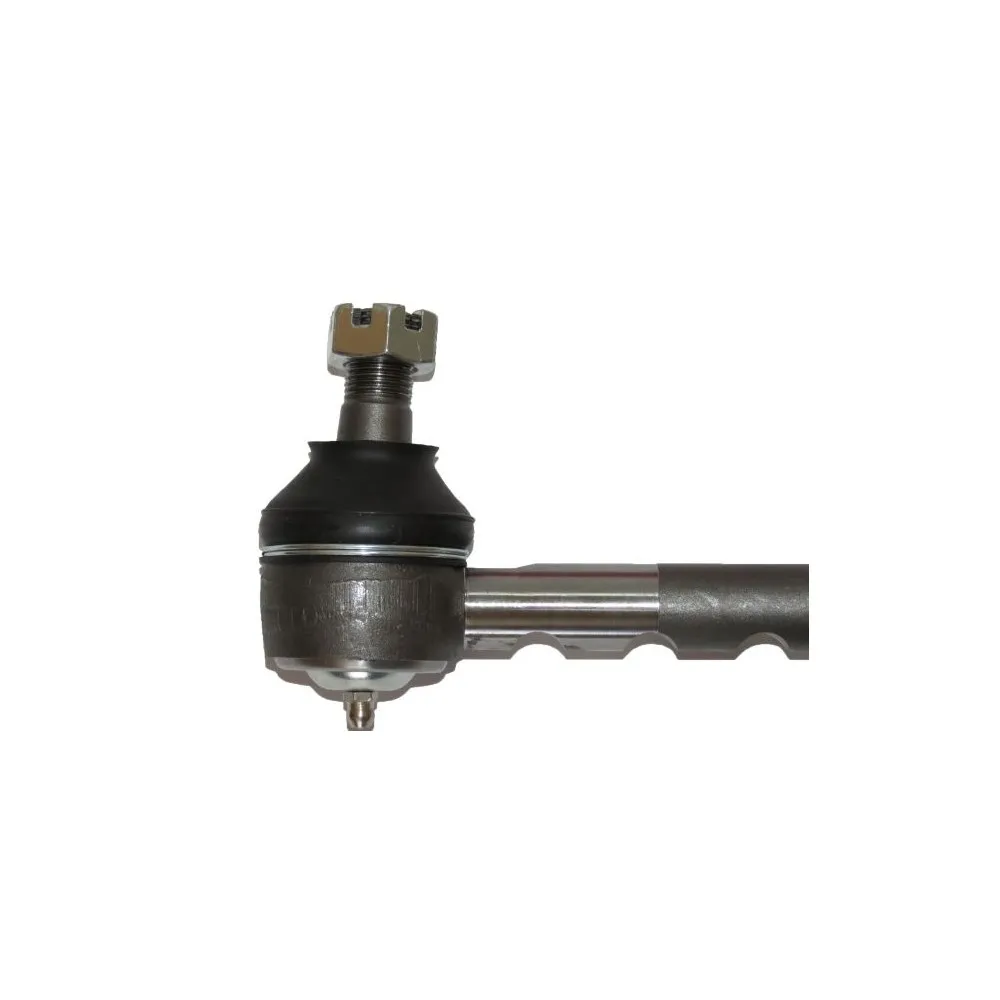

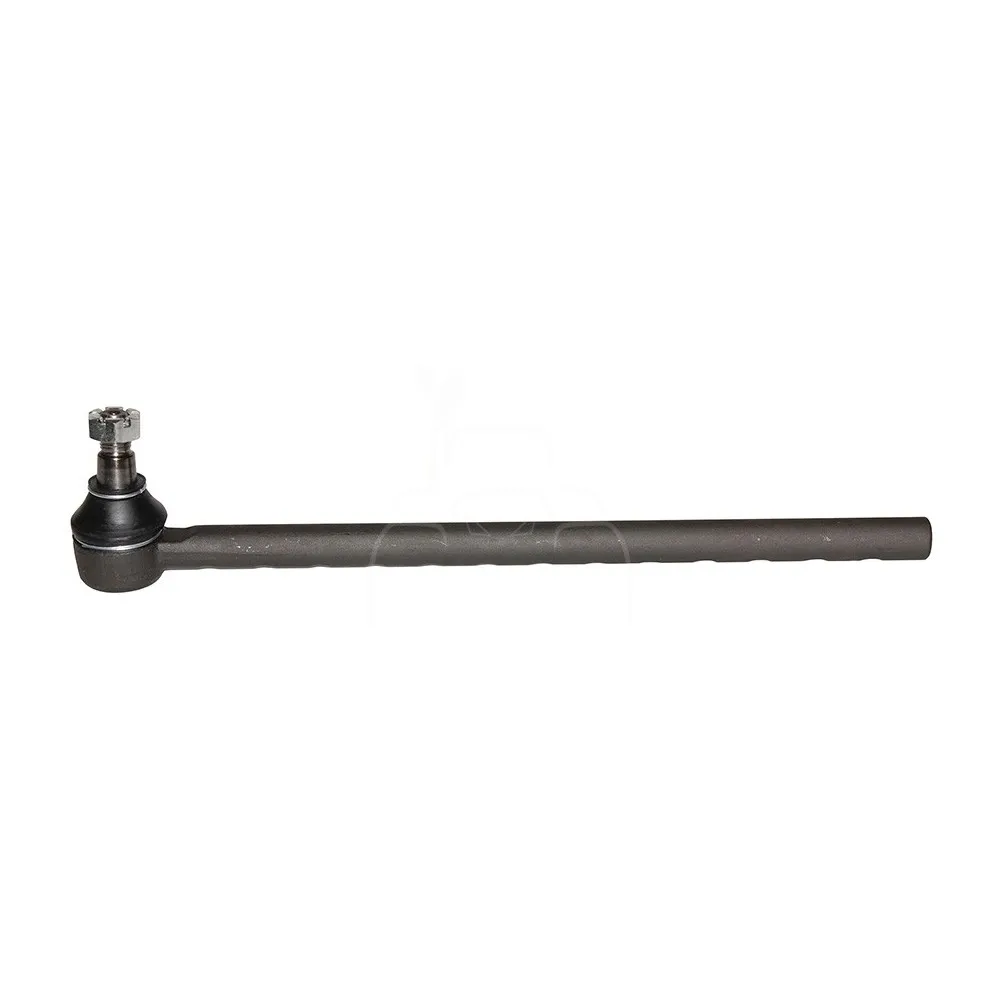

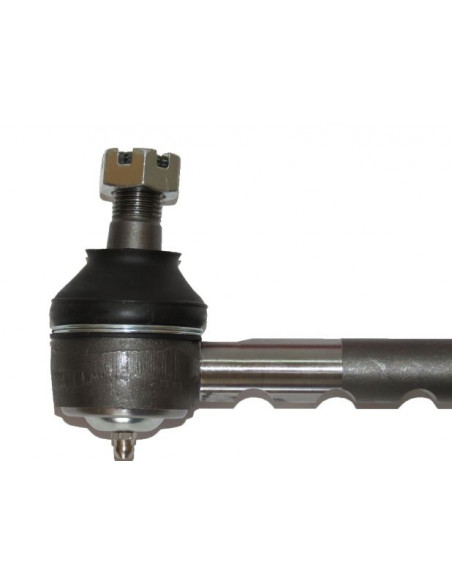

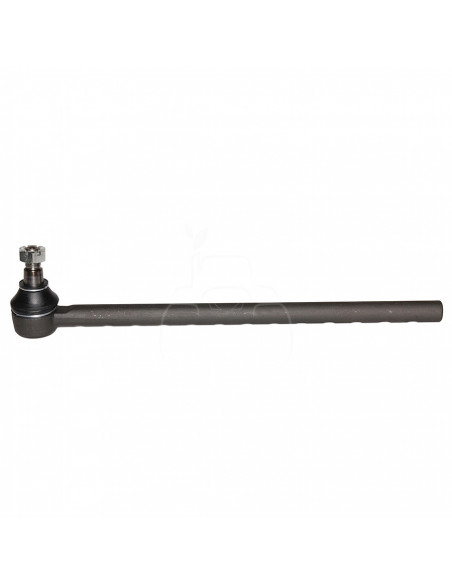

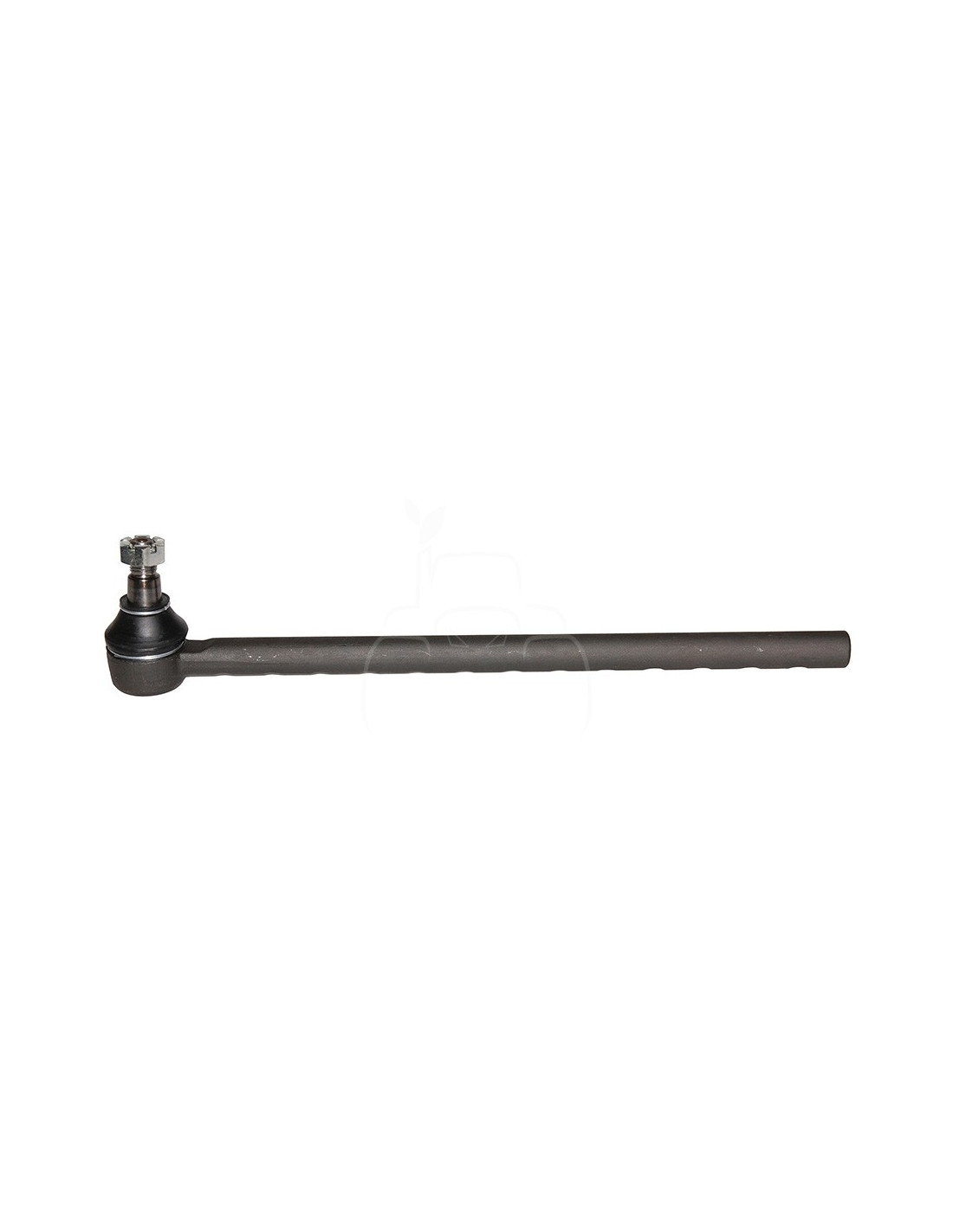

Rótula regulable 13 muescas 370mm
Rótula regulable 13 muescas 370mm Rótula regulable 13 muescas 370mm Rótula regulable 13 muescas 370mm Rótula regulable 13 muescas 370mm
Rótula regulable 13 muescas 370mm

Rótula regulable 13 muescas 370mm

ATH26/495-16

33,98 € IVA inc.

Rótula regulable 13 muescas 370mm John Deere

Referencia: AL39024, AT27134, 14M7395, 495-16

Más detalles

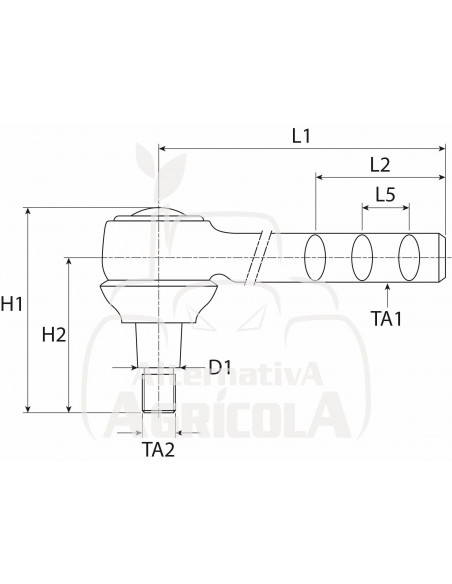

Ficha de datos
Marca Compatible John Deere
Tipo B
Tipo de Rosca Metric

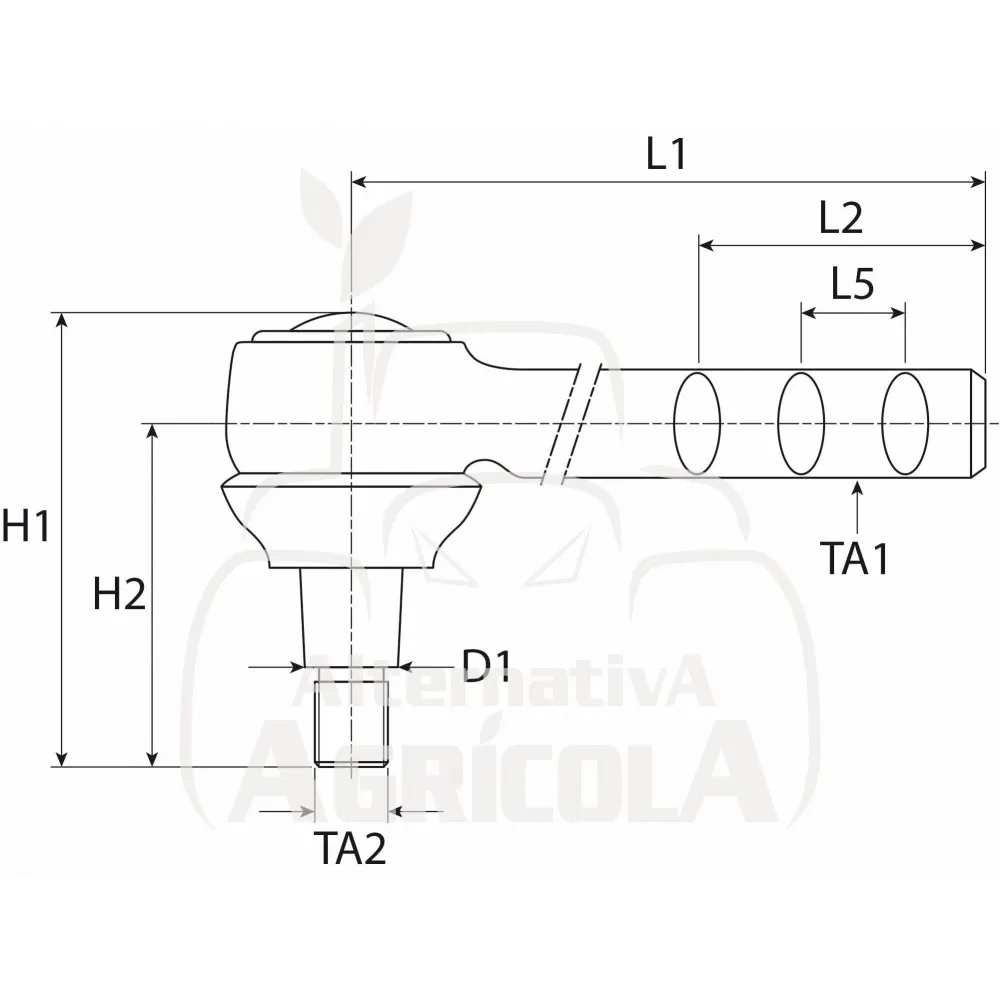

Rosca TA1: 20 mm / TA2: M14x1.5 RH
Cono Menor / Cono Mayor 16,5 mm / 18,5 mm
Altura del Cono 21 mm
Diámetro 20 mm

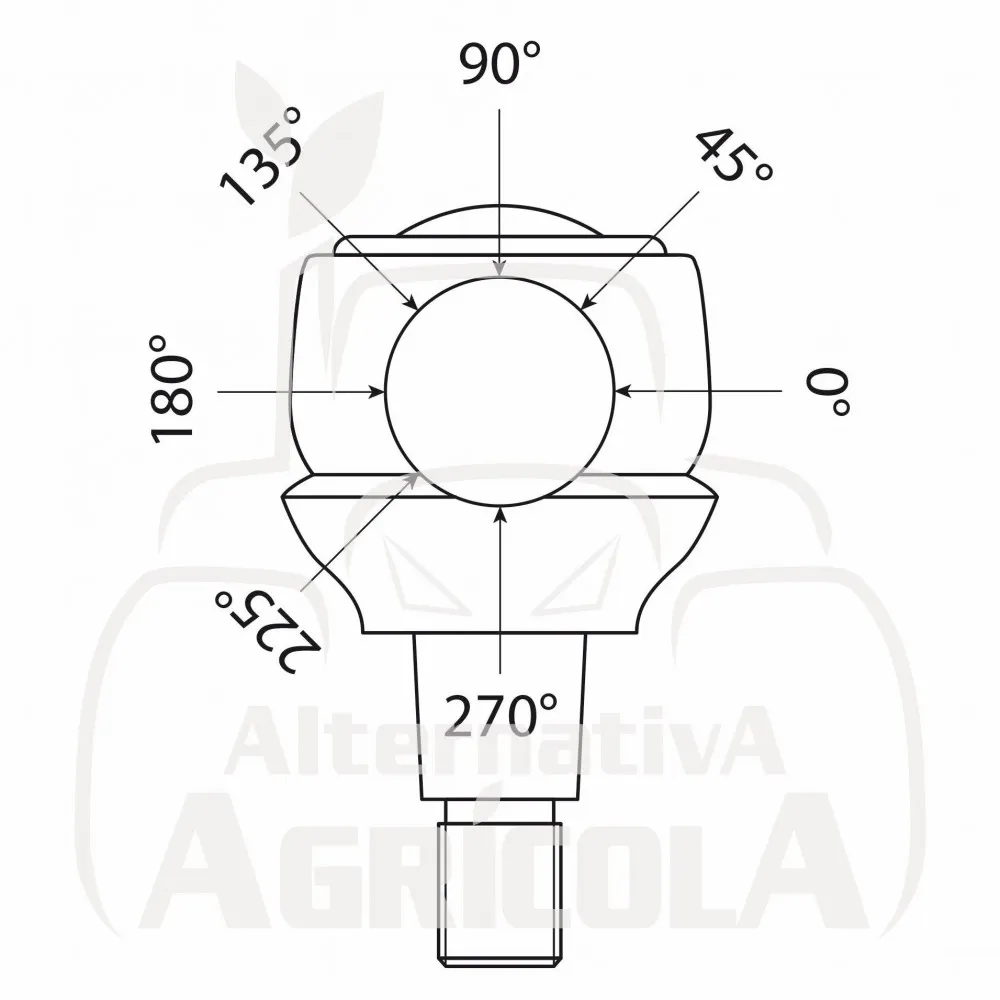

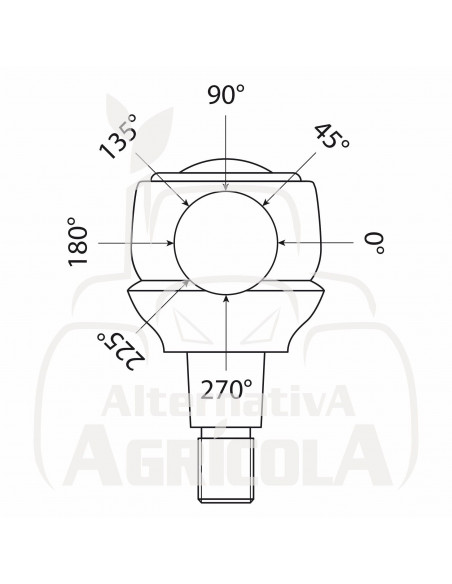

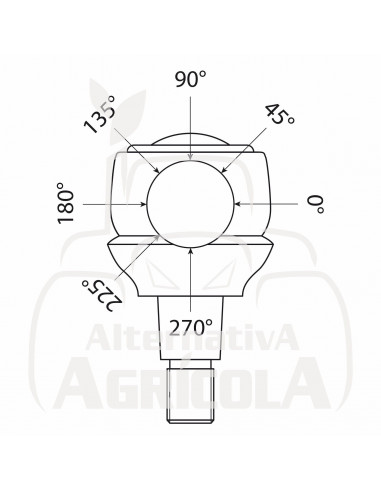

Ángulo 90º
Diámetro del agujero 12 mm
H (mm) H1: 80 mm / H2: 70 mm
L1 340 mm
L2 330 mm
Código alternativo 26/495-16 (ATH)

John Deere - Tractor

20
1020 , 1020 (Europe) , 1120 , 2020 , 2020 (Europe) , 2120 (Europe) , 2120 (USA) , 820 , 820 (North America) , 920

30
1030 , 1030 (Espana) , 1030OU (Espana) , 1030VU (Espana) , 1130 , 1630 , 1630 (Espana) , 1630OU (Espana) , 1630VU (Espana) , 830 (Europe) , 830 (North America) , 930 (Europe) , 930VU (Espana)

40
1040 (Espana) , 1040 (Europe) , 1040V (Espana) , 1140 (Espana) , 1140 (Europe) , 1140F (Espana) , 1140V (Espana) , 1640 (Espana) (Despeje bajo) , 1640 (Europe) (Despeje bajo) , 1640F (Espana) (Despeje bajo) , 840 (Europe) , 940 (Espana) , 940 (Europe) , 940V (Espana)

50
1350 (Europe) , 1550 (Europe) , 1750 (Europe) , 1750V (Espana) , 1850 (Espana) , 1850 (Europe) , 1850F (Espana) , 1850N (Europe) , 1850V (Espana)
