Rótula dirección Roscada Derecha CNH 18,3:20 20x100
Rótula dirección Roscada Derecha CNH 18,3:20 20x100
Rótula dirección Roscada Derecha CNH 18,3:20 20x100

Rótula dirección Roscada Derecha CNH 18,3:20 20x100

ATH23/497-95

30,25 € IVA inc.

Rótula dirección Roscada Derecha CNH 18,3:20 20x100

Referencia: 312901916, 312906276, HF5109553, SF4982356, 497-95

Más detalles

Ficha de datos
Ubicación A16/A02-1ª
Marca Compatible Ford
Marca Compatible Fiat
Marca Compatible New Holland
Marca Compatible Case IH
Tipo de Rosca Metric

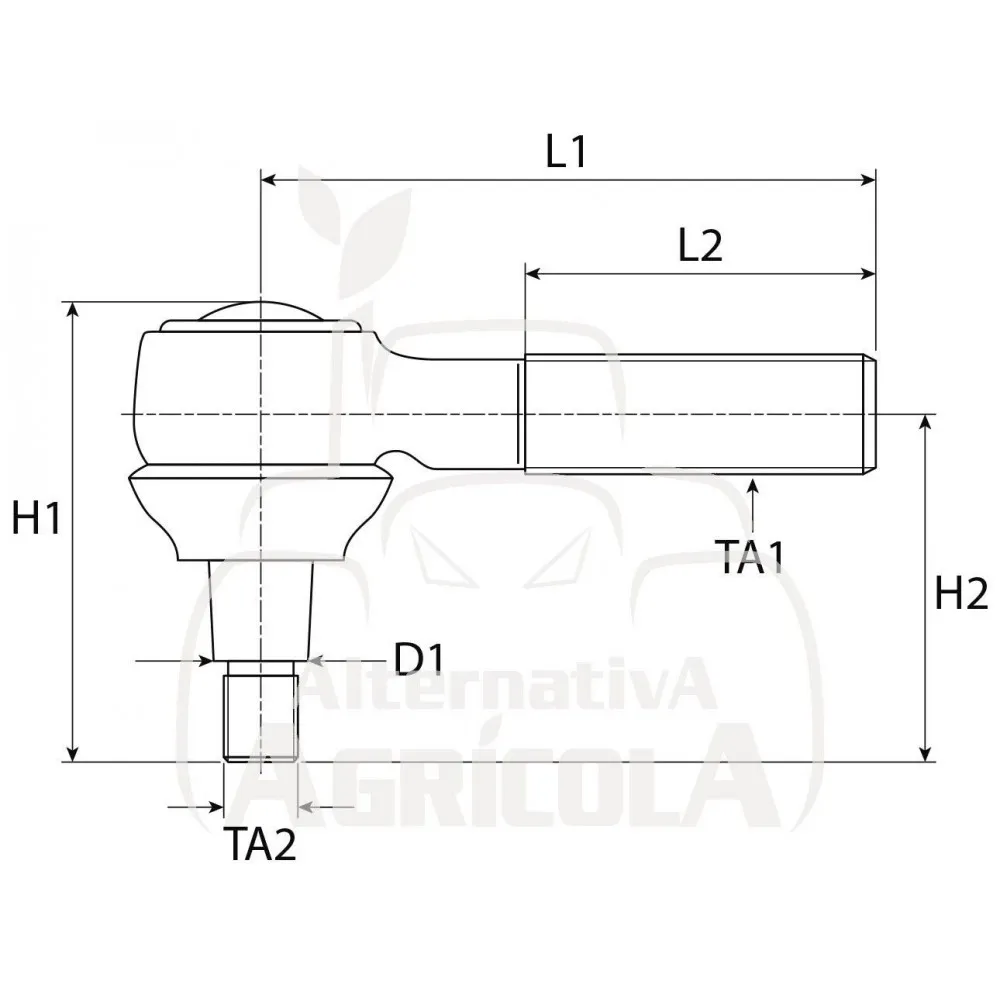

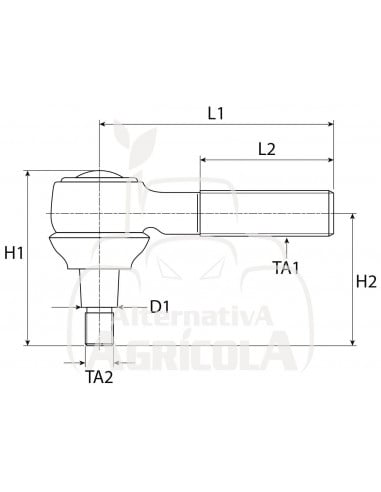

Rosca TA1: M20x1.0 RH / TA2: M16x1.5 RH
Cono Menor / Cono Mayor 18 mm / 20 mm
H (mm) H1: 88 mm / H2: 75 mm
L1 75 mm
L2 51 mm

Case-IH - Tractor

AVJ
AVJ55, AVJ60, AVJ70

JXU
JX100U, JX1070U, JX1080U, JX1090U, JX1100U, JX70U, JX80U, JX90U

JXC
JX1060C, JX1070C, JX1075C, JX1085C

JX
JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90, JX95

Fiat - Tractor

Classique
400, 450, 480, 500, 540, 550, 566, 570, 580, 600, 640, 666, 670, 680, 766, 780, 900, 1000, 1000DT, 1000N, 1000S, 1000 Sup, 1300DT, 400DT, 420DT, 450DT, 466DT, 480DT, 500DT, 540DT, 540S, 450, 650, 750, 850, 880

Winner
F100Dal, F100Fino, F110, F115

L
L60, L65, L75, L85, L95

90
100-90DT, 110-90DT, 65-90DT, 70-90DT, 80-90DT, 85-90DT, 90-90DT, 55-90 DT, 60-90DT

66
45-66DT, 55-66DT LP, 65-66DT, 70-66DT, 80-66DT, 60-66DT, 45-66SDT

46
65-46DT, 55-46DT, 60-46DT

56
65-56DT, 70-56DT, 60-56DT

88
65-88DT, 55-88DT, 60-88DT

93
65-93DT, 72-93DT, 82-93DT, 88-93DT

94
65-94DT, 72-94DT, 82-94DT, 88-94DT, 60-94DT

76
55-76VDT, 60-76FDT, 70-76LPDT, 80-76FDT

86
55-86FDT, 60-86FDT, 70-86VDT, 82-86FDT, 72-86LPDT, 62-86FDT, 82-86LPDT

Ford - Tractor

10S
3010S, 4010S, 5010S

30
3430, 3830 (2WD), 3930, 3930H, 3930N, 3930NO, 4030 (2WD), 4130, 4130N, 4130NO, 4230 (2WD), 4430 (2WD), 4630, 4630N, 4630NO, 4830, 4830N, 5030

35
3435 (2WD) (= fiat 45-66S), 3935 (2WD), 4135 (2WD) (= fiat 55-66S), 4635 (= fiat L60), 4835 (= Fiat L65), 5635 (= Fiat L75), 6635, 7635 (9/95 ->12/98)

40
5640, 6640, 7740, 7840

New Holland - Tractor

T4
T4.100F, T4.105 F, T4.110F, T4.55S, T4.65S, T4.75F, T4.75S, T4.80F, T4.85 F, T4.90F, T4.95 F

T4000
T4020, T4030, T4040

T4000 Deluxe
T4020 Deluxe, T4030 Deluxe

T4000F
T4030F, T4040F, T4050F, T4060F

T6
T6.120

TD
TD60, TD65B, TD70, TD80, TD90, TD95

TD3
F480, TD3.50

TD4000F
TD4020F, TD4030F, TD4040F

TD4F
TD4.70F, TD4.80F, TD4.90F

TD5
TD5.100, TD5.105, TD5.110, TD5.115, TD5.65, TD5.75, TD5.80, TD5.85, TD5.90, TD5.95

TD5000
TD5010, TD5020, TD5030, TD5040, TD5050

TDD
TD55D, TD60D, TD60D Plus, TD65D, TD70D, TD70D Plus, TD75D, TD80D, TD80D Plus, TD85D, TD90D, TD90D Plus, TD95D, TD95D Plus

TDF
TD65F, TD75F, TD85F

TL
TL100 (10/98->1/04), TL70, TL80 (10/98->1/04), TL90

TLA
TL100A (1/04->), TL70A, TL80A (1/04->), TL90A (1/04->)

TN
TN55, TN65, TN70, TN75

TNA
TN60A, TN70A, TN75A, TN85A

TND
TN55D, TN65D, TN70D, TN75D

TNDA
TN60DA, TN70DA, TN75DA, TN85DA

TNF
TN65F, TN70F, TN75F, TN80F, TN90F, TN95F

TNFA
TN75FA, TN85FA, TN95FA

TNSA
TN75SA

TS
TS100, TS110, TS115, TS80, TS90

TT
TT55, TT65, TT75

Referencia: 04955011, 4955011, 4982356, 5109553, 5109553N, SF5109553, 312900313
