WP3426336M1

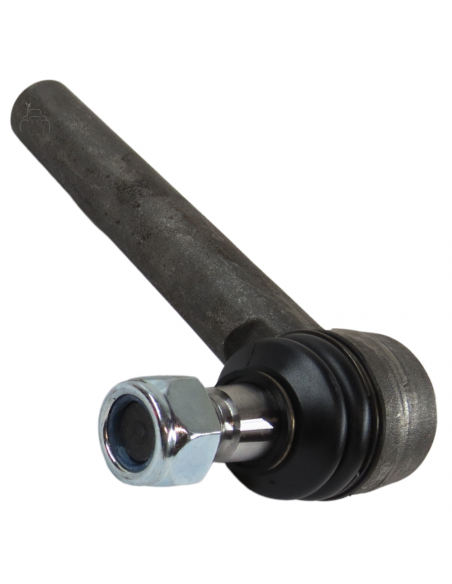

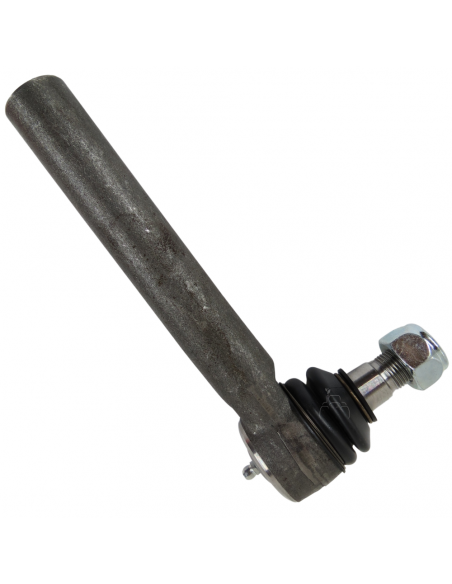

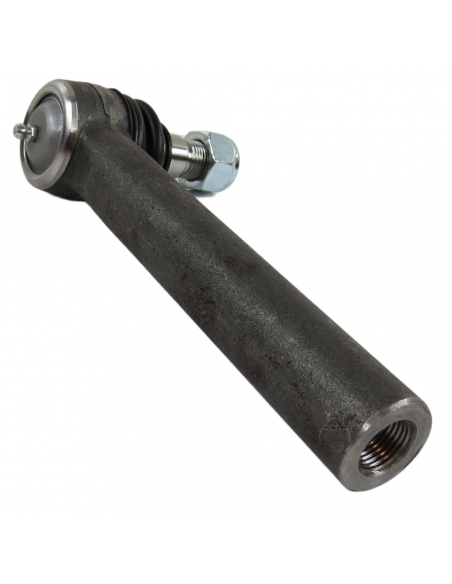

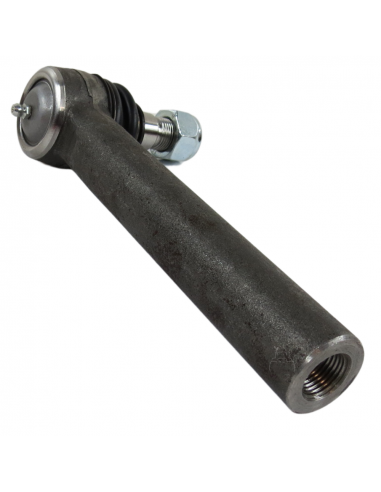

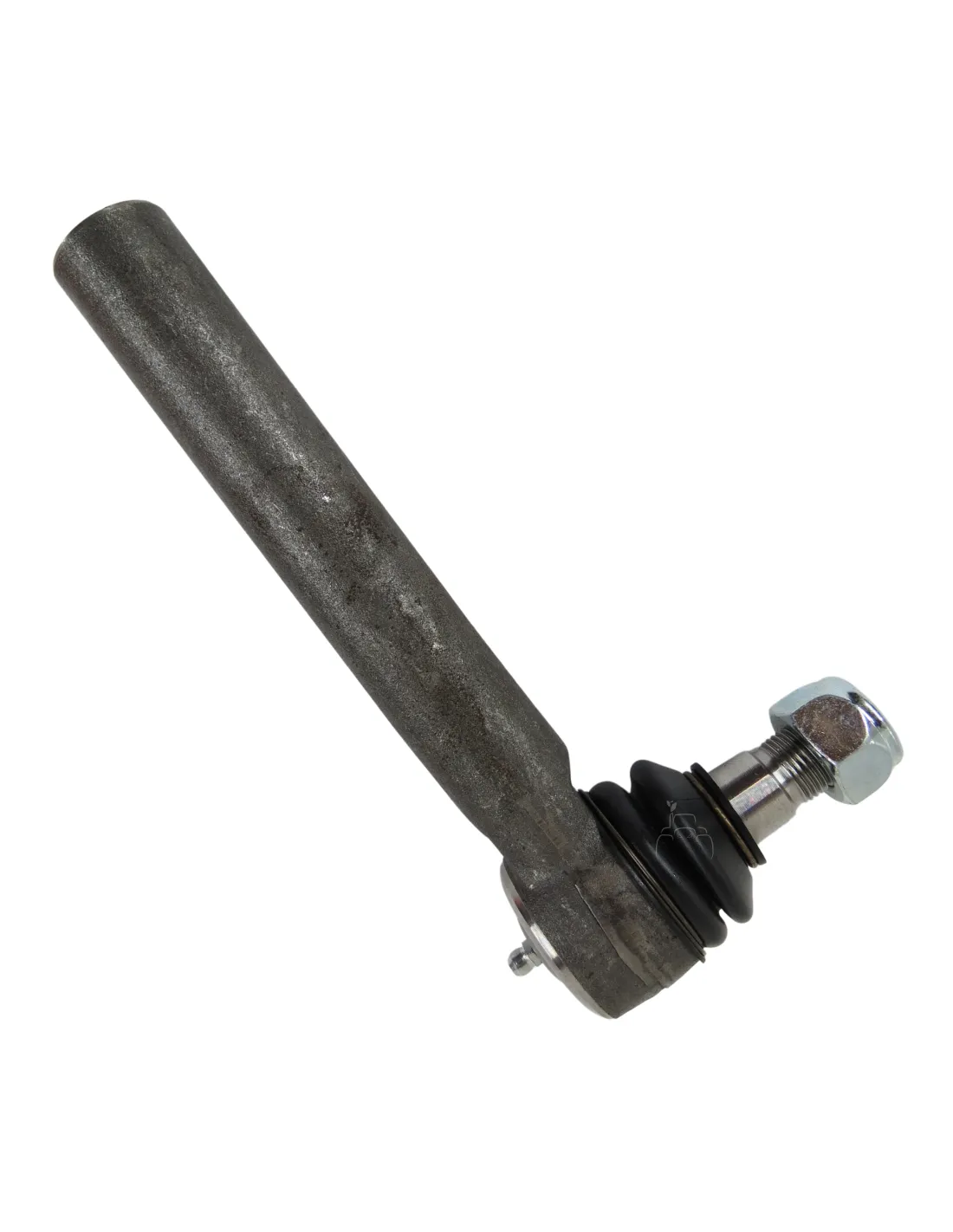

Rótula dirección recta hembra
Referencia: 3426336M1, S41711, VA350001, SHP205KR(KR), 495-37
Ubicación | A16/B04 |
Marca Compatible | Landini |
Marca Compatible | Mc Cormick |
Marca Compatible | John Deere |
Marca Compatible | Massey Ferguson |
Marca Compatible | New Holland |
Marca/Modelo | Winex Parts |
Tipo | B |
Tipo de Rosca | Metric |

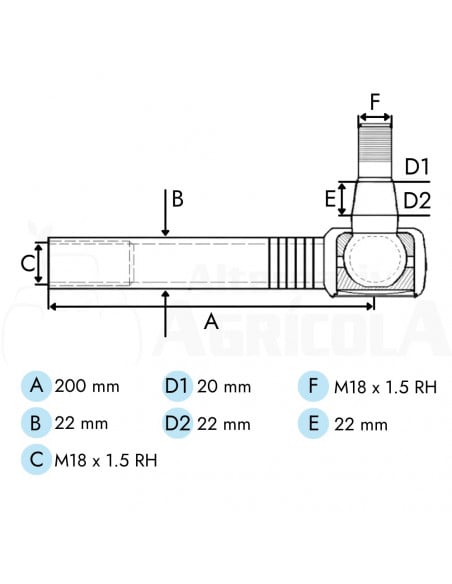

Rosca | TA1: M18x1.5 RH / TA2: M18x1.5 RH |
Cono Menor / Cono Mayor | 20 mm / 22 mm |
H (mm) | H1: 90 mm / H2: 75 mm |
L1 | 200 mm |
L2 | 66 mm |
60
5860, 6060, 6860, 68CV, 7860, 7860HC, 8860, 8860HC, 9060
60 NG
5860, 6860, 7860, 8860
60 Tier2
6865, 7860, 8865
70
5870, 6070, 6870, 7870, 78CV, 8870, 88CV
80
6880, 6880VM, 7880, 7880VM, 8880, 8880HC, 9080, 9080HC, 9880, 9880HC
Blizzard
Blizzard 50, Blizzard 60, Blizzard 65, Blizzard 75, Blizzard 85, Blizzard 95
Ghibli
Ghibli 80, Ghibli 90
Ghibli Tier 2
Ghibli 85, Ghibli 95
GlobalFarm
GlobalFarm 100, GlobalFarm 105, GlobalFarm 90, GlobalFarm 95
Mythos
Mythos 90
PowerFarm Meccanico Tier 2
PowerFarm 60, PowerFarm 75, PowerFarm 85, PowerFarm 95
PowerFarm Meccanico Tier 3
PowerFarm 100, PowerFarm 75, PowerFarm 80, PowerFarm 90
PowerFarm RPS Tier 2
PowerFarm 75, PowerFarm 85, PowerFarm 95
PowerFarm RPS Tier 3
PowerFarm 100, PowerFarm 80, PowerFarm 90
Vision
Vision 80, Vision 90
Vision Tier 2
Vision 85, Vision 95
1000
1007
200
240
200 (Brasil - South Africa)
283 F
300
353, 353LX, 353S, 363, 363LX, 363S, 373, 373LX, 373S, 377, 383, 383LX, 383S, 387, 393, 393LX, 393S, 393TLX, 397, 397T
3000
3050 (->D066031), 3060 (->D030029), 3065 (->D030029)
3600
3610, 3615, 3625, 3630, 3635, 3640, 3645, 3650
TM Brasil
TM150 (Brasil)
5000
5200, 5300, 5400 (4WD), 5500
5003
5103 (North America) (4WD), 5203 (North America) (4WD), 5303 (North America) (4WD), 5403 (North America), 5603
5005
5105 (>411494), 5205 (>421397), 5415 (>005885), 5425HC (Worldwide)
5010
5210 (North America), 5310 (North America) (4WD), 5410 (North America) (4WD), 5510 (North America)
5015
5615 (>004119), 5615 (Turkey) (>001049), 5615HC, 5715 (>008633), 5715 (Turkey) (>001131), 5715HC
5020
5220 (CS >420010,TSS >422082 & >425009,PR >426020 & >429001), 5320 (4WD), 5420 (CS >440014,TSS >442180 & >445032,PR >446069 & >449008), 5520 (CS >450004,TSS >452091 & >455002,PR >456080 & >459005)
5025
5525, 5625, 5625HC (Worldwide), 5725HC (Worldwide)
C-Max
C85Max
Referencia: 3426336R1, 3426366M92, 3658001M91, 6000103260, HM3426336
