ATH26/495-191

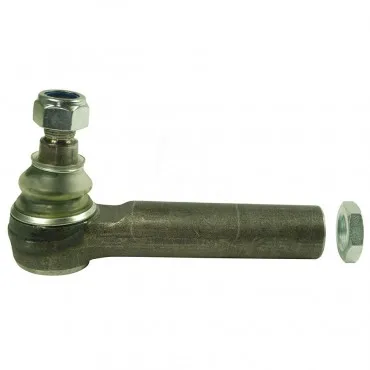

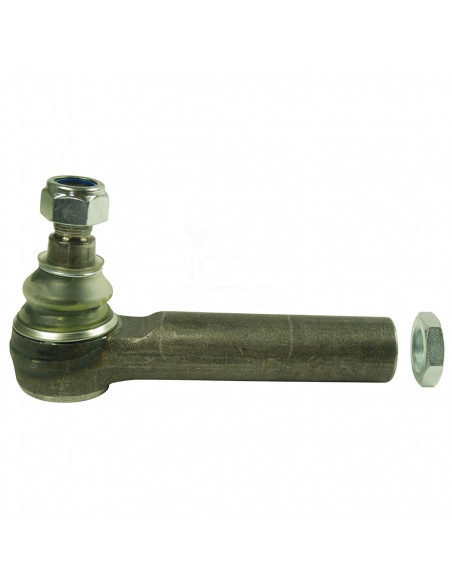

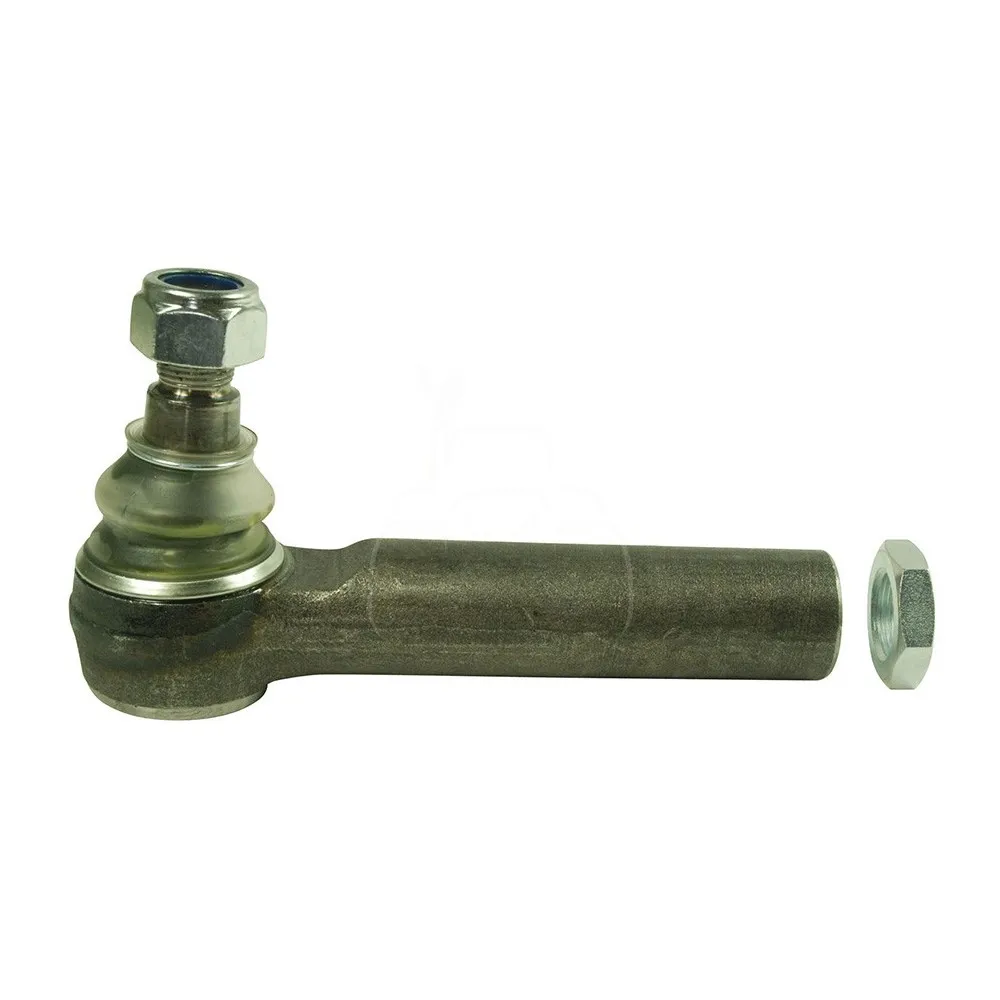

RÓTULA DE DIRECCIÓN
Referencia: 551916 , AL161301 , AL161338 , AL204776 , AL204780, 495-191
Marca Compatible | John Deere |
Tipo | B |
Tipo de Rosca | Metric |

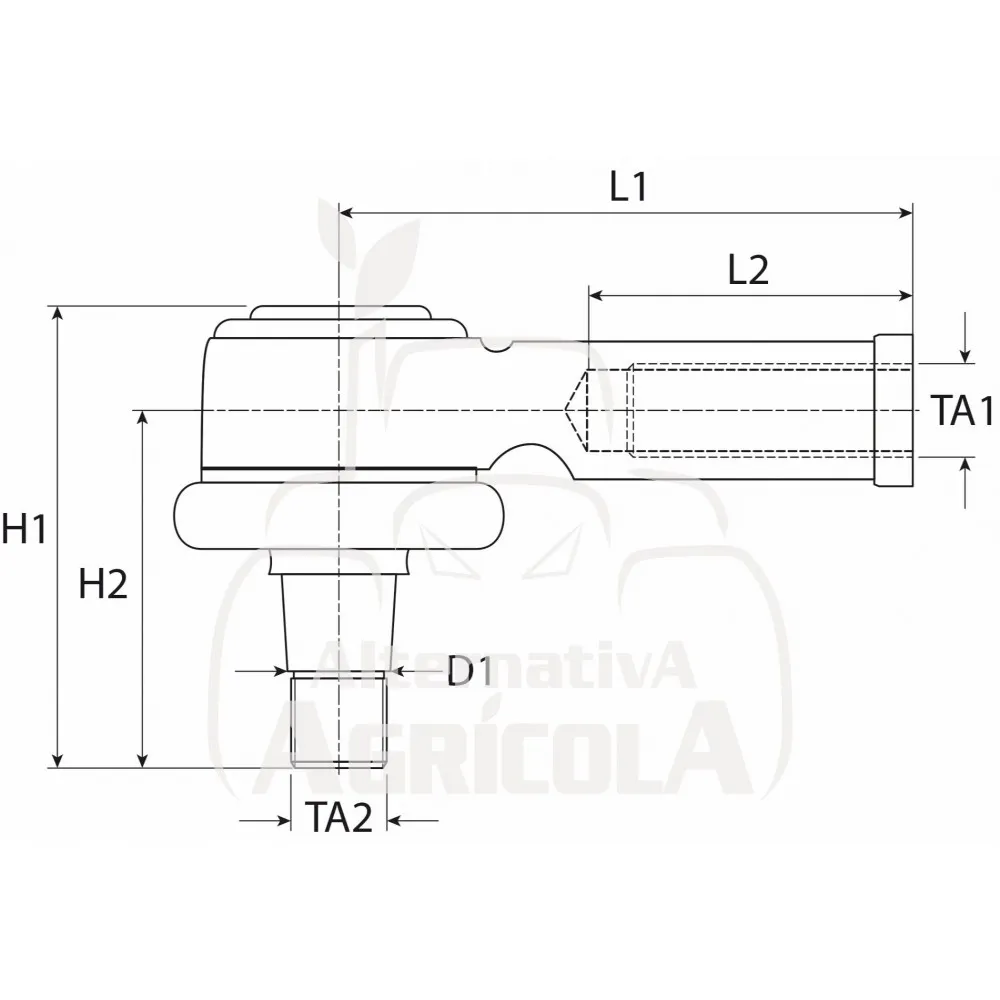

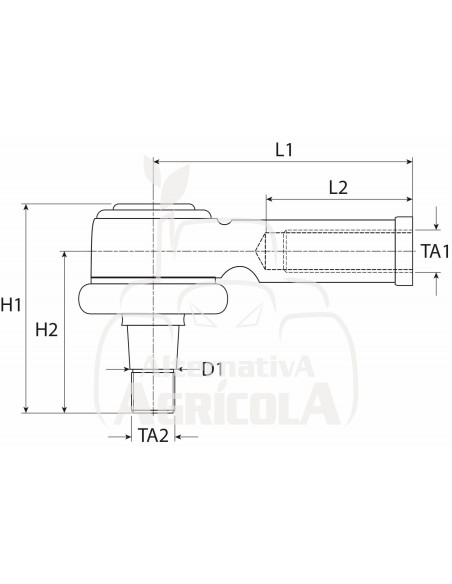

Rosca | TA1: M24x1.5 RH / TA2: M20x1.5 RH |
Cono Menor / Cono Mayor | 23,5 mm / 26,5 mm |
H (mm) | H1: 109 mm / H2: 90 mm |
L1 | 180 mm |
L2 | 77 mm |
04 (China)
1204 (China) , 1404 (China) , JD1354-A (China)
6003
6403 (Mexico,South Africa,Asia , 6403 (North America) , 6603 (North America)
6005
6215 (Europe) , 6215 (North America) , 6225 (Europe) , 6325 (Europe) , 6415 (North America) , 6425 (Europe) , 6425 (Mexico)
6020
6020 (Europe) , 6020S (Europe) , 6020SE (Europe) , 6120 (Europe) , 6120 (North America) , 6120L (North America) , 6120SE (Europe) , 6220 (Europe) , 6220 (North America) ,6220L (North America) , 6220SE (Europe) , 6320 (Europe) , 6320 (North America) , 6320L (North America) , 6320SE (Europe) , 6420 (Europe) , 6420 (North America) , 6420L (North America) , 6420S (Europe) , 6420SE (Europe) , 6520L (North America)
6030
6130 (Europe) , 6230 (Europe) , 6230 (North America) , 6230PR (Europe) , 6230PR (North America) , 6330 (Europe) , 6330 (North America) , 6330PR (Europe) , 6330PR (North America) , 6430 (Europe) , 6430 (North America) , 6430PR (Europe) , 6430PR (North America)
6B
6110B (China) , 6120B (Asia) , 6135B (Russia and Asia) , 6140B (Asia)
6B (China)
6B-1404 (China)
6D
6100D (Worldwide) , 6110D (Worldwide) , 6115D (Worldwide) , 6125D (Worldwide) , 6130D (Worldwide) , 6130D iT4 (North America)
6E
6105E FT4 (Worldwide) , 6120E FT4 (Worldwide) , 6135E FT4 (Worldwide)
