ATH23/495-103

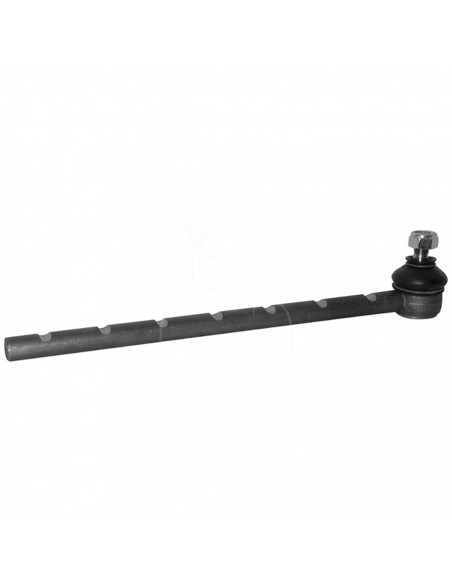

RÓTULA DE DIRECCIÓN
Referencia: 4998975 , 5085085 , 5109530 , SF4998975 , 495-103
Marca Compatible | New Holland |
Marca Compatible | Case IH |
Marca Compatible | Ford |
Marca Compatible | Fiat |
Tipo | V |
Tipo de Rosca | Inch |

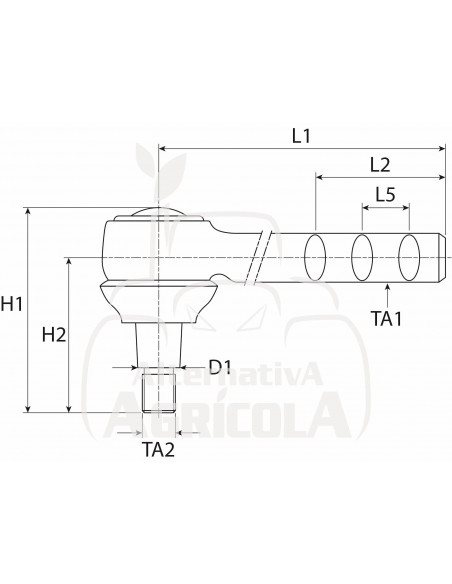

Rosca | TA1: Ø 20 / TA2: 5/8" UNF |
Cono Menor / Cono Mayor | 16 mm / 18 mm |

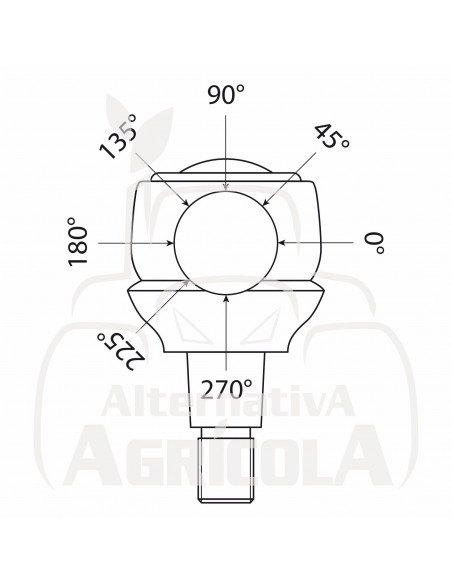

Ángulo | 270º |
Diámetro del agujero | 9 mm |
H (mm) | H1: 84 mm / H2: 70 mm |
L1 | 640 mm |
L2 | 590 mm |
Otros datos | Número de agujeros: 6 |
AVJ
AVJ55 , AVJ60 , AVJ70
Farmall
65A , 75A , 85A , 95A
Farmall JX
Farmall 100JX , Farmall 70JX , Farmall 75JX , Farmall 80JX , Farmall 90JX
JX
JX55 , JX60 , JX65 , JX70 , JX75 , JX80 , JX85 , JX90 , JX95
JXN
JX1070N , JX1075N , JX1095N
JXV
JX1060V , JX1070V , JX1075V , JX1095V
VJ
VJ60 , VJ70 , VJ80
Classique
466 , 566 , 570 , 580 , 666 , 670 , 680 , 766 , 780 , 980 , 466DT , 650 , 880 , 666
Winner
F100Dal , F100Fino , F110 , F115 , F120 , F130 , F140
90
100-90 , 100-90DT , 110-90DT , 110-90 , 55-90 , 60-90 , 65-90 , 65-90DT , 70-90 , 70-90DT , 80-90 , 80-90DT , 85-90 , 85-90DT , 90-90 , 90-90DT , 55-90 DT
66
45-66 , 45-66DT , 45-66V , 50-66 , 50-66S , 50-66DT , 55-66 , 55-66DT LP , 60-66 , 70-66 , 70-66DT , 70-66F , 70-66LP , 80-66 , 80-66DT , 80-66F , 60-66DT , 45-66S , 55-66LP , 55-66S , 56-66S , 60-66LP , 60-66S , 65-66 , 65-66S , 70-66S , 70-66V , 80-66S
46
55-46 , 60-46 , 65-46 , 65-46DT , 55-46DT , 60-46DT
56
55-56 , 55-56DT , 65-56DT , 65-56 , 70-56DT , 70-56L
76
55-76F , 55-76V , 60-76F , 70-76DT , 70-76F , 70-76LP , 70-76V , 55-76FDT , 55-76VDT , 60-76FDT
88
55-88 , 60-88 , 65-88 , 65-88DT , 70-88 , 70-88DT , 80-88 , 80-88DT , 55-88DT , 60-88DT
86
60-86F , 60-86V , 82-86DT , 82-86F , 82-86LP , 55-86F , 55-86V , 55-86FDT , 55-86VDT , 60-86FDT , 60-86VDT , 72-86LP
93
60-93 , 60-93DT , 65-93 , 65-93DT , 72-93 , 72-93DT , 82-93 , 82-93DT , 88-93
94
60-94 , 65-94 , 65-94DT , 72-94 , 72-94DT , 82-94 , 82-94DT , 88-94
TDD
TD55D , TD75D , TD85D , TD95D , TD80D , TD90D , TD60D , TD70D , TD60D Plus , TD70D Plus , TD80D Plus , TD90D Plus , TD95D Plus
TD
TD95 , TD90 , TD80 , TD70 , TD60
TD5000
TD5010 , TD5020 , TD5030 , TD5040 , TD5050
T3F
T3.50F , T3.55F , T3.65F , T3.75F
TD5
TD5.100 , TD5.65 , TD5.75 , TD5.80 , TD5.85 , TD5.90 , TD5.95
TDF
TD65F , TD75F , TD85F
TT
TT50 , TT55 , TT65 , TT65D , TT75
35
3435 (2WD) , 3935 (2WD) , 4135 (2WD)
