ATH23/497-97

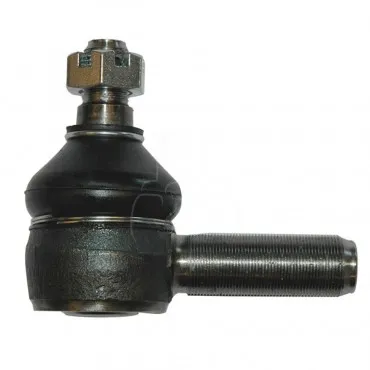

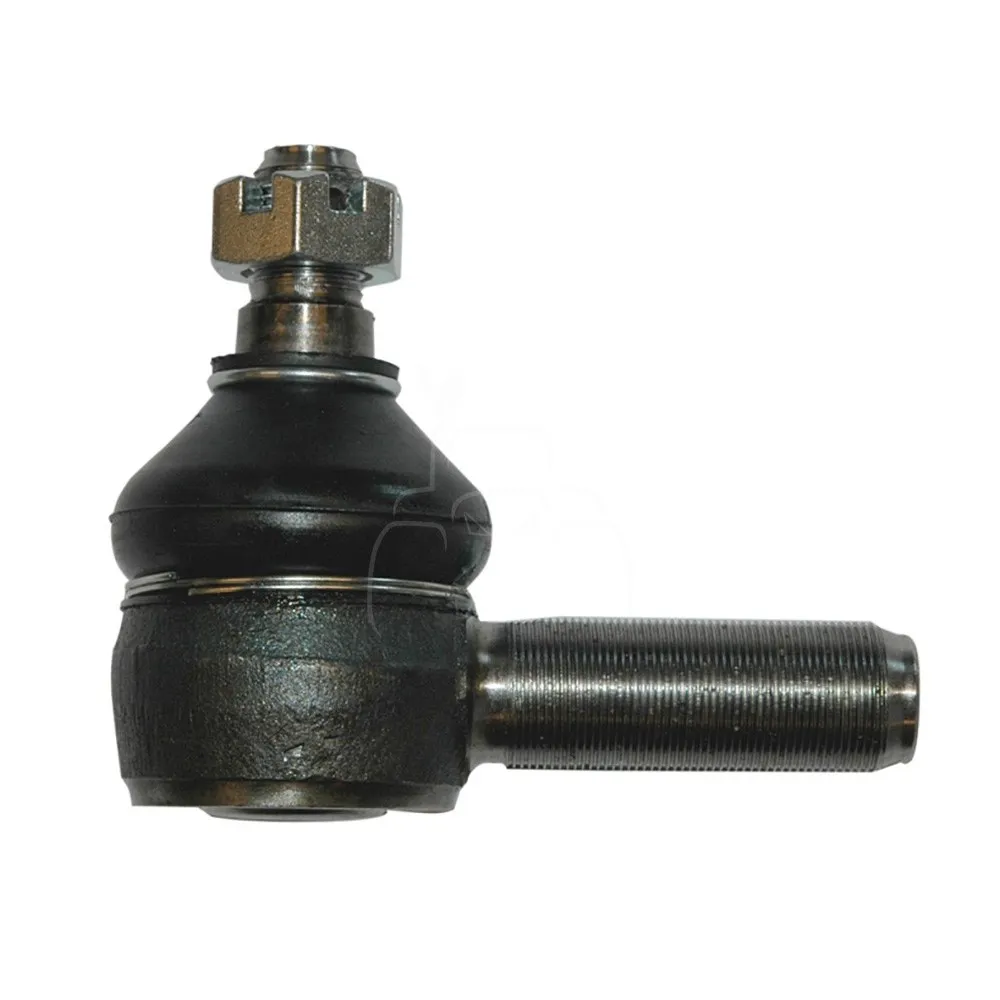

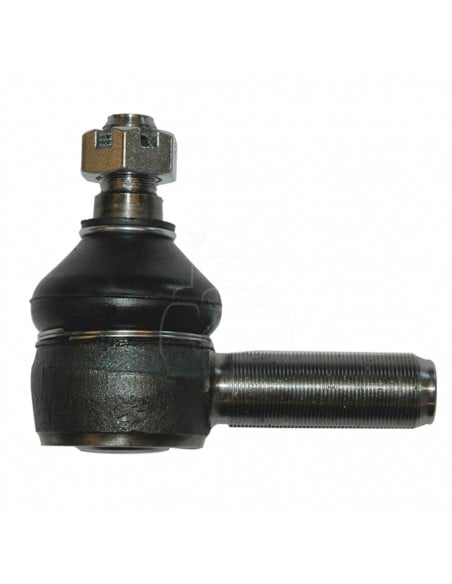

RÓTULA DE DIRECCIÓN
Referencia: 4954941 , 4987961 , 5109526 , 87569214 , S63167 , 497-97
Marca Compatible | Fiat |
Marca Compatible | New Holland |
Marca Compatible | Case IH |
Marca Compatible | Ford |
Tipo | A |
Tipo de Rosca | Metric |

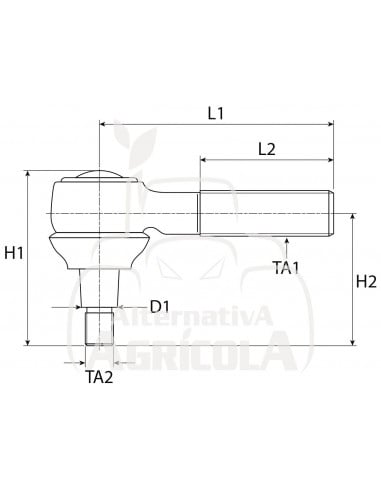

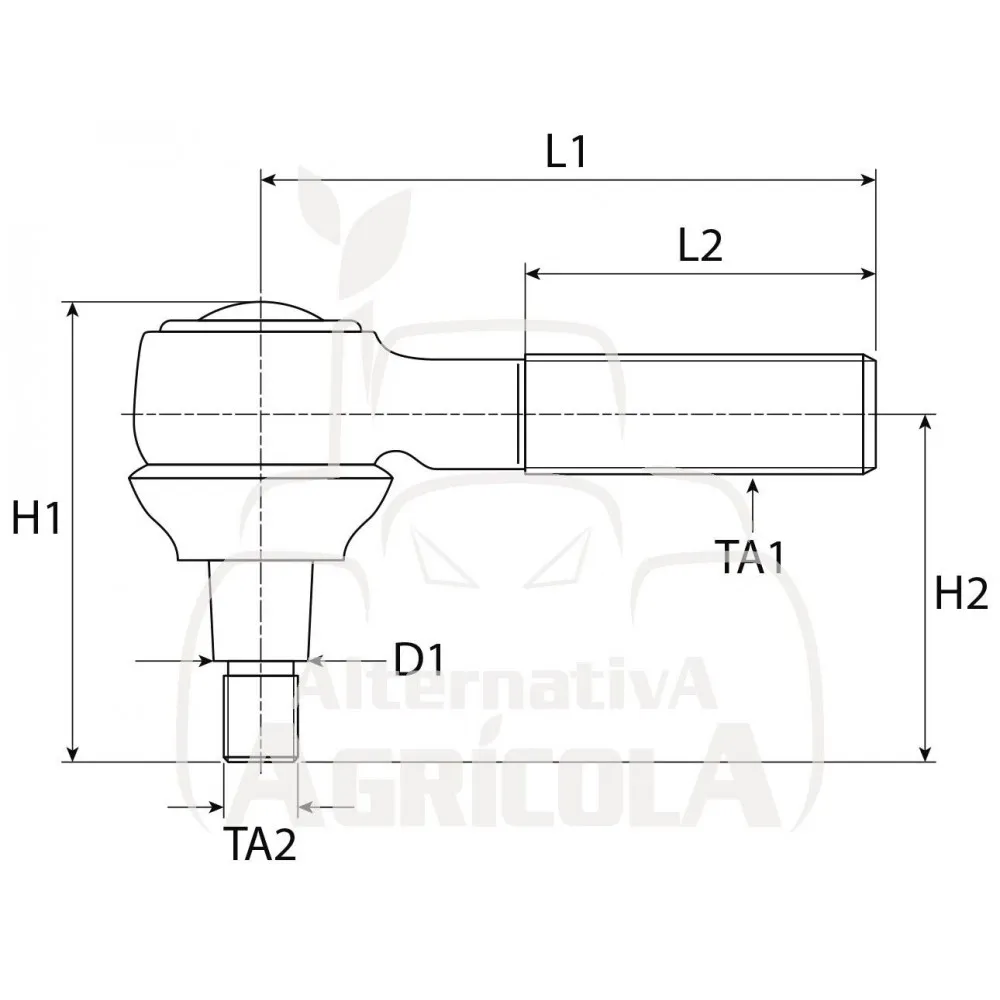

Rosca | TA1: M20x1.0 RH / TA2: M14x1.5 RH |
Cono Menor / Cono Mayor | 16 mm / 18 mm |
H (mm) | H1: 84 mm / H2: 70 mm |
L1 | 75 mm |
L2 | 54 mm |
AVJ
AVJ55 , AVJ60 , AVJ70
JX
JX80 , JX90 , JX95
JXN
JX1070N , JX1075N , JX1095N
JXV
JX1060V , JX1070V , JX1075V , JX1095V
Quantum
105N , 105V , 65V , 75N , 75V , 85N , 85V , 95N , 95V
VJ
VJ60 , VJ70 , VJ80
46
55-46 , 55-46DT , 60-46 , 60-46DT , 65-46 , 65-46DT
56
55-56 , 55-56DT , 65-56 , 65-56DT , 70-56 , 70-56DT , 70-56L
66
35-66 , 45-66 , 45-66DT , 45-66S , 45-66V , 50-66 , 50-66DT , 50-66S , 55-66 , 55-66DT LP , 55-66LP , 55-66S , 55-66V , 56-66S , 60-66 , 60-66DT , 60-66F , 60-66LP , 60-66S , 65-66 , 65-66S , 70-66 , 70-66DT , 70-66F , 70-66LP , 70-66S , 70-66V , 80-66 , 80-66DT , 80-66F , 80-66S
76
45-76V , 55-76F , 55-76FDT , 55-76V , 55-76VDT , 60-76F , 60-76FDT , 70-76DT , 70-76F , 70-76LP , 70-76V , 80-76F
86
50-86SV , 50-86V , 55-86F , 55-86FDT , 55-86SV , 55-86V , 55-86VDT , 60-86F , 60-86FDT , 60-86SV , 60-86V , 60-86VDT , 62-86F , 70-86SV , 70-86SVDT , 70-86V , 70-86VDT , 72-86F , 72-86LP , 82-86DT , 82-86F , 82-86FDT , 82-86LP
88
55-88 , 55-88DT , 60-88 , 60-88DT , 65-88 , 65-88DT , 70-88 , 70-88DT , 80-88 , 80-88DT
90
100-90 , 100-90DT , 110-90 , 110-90DT , 55-90 , 55-90 DT , 60-90 , 65-90 , 65-90DT , 70-90 , 70-90DT , 80-90 , 80-90DT , 85-90 , 85-90DT , 90-90 , 90-90DT
93
60-93 , 60-93DT , 65-93 , 65-93DT , 72-93 , 72-93DT , 82-93 , 82-93DT , 88-93
94
60-94 , 65-94 , 65-94DT , 72-94 , 72-94DT , 82-94 , 82-94DT , 88-94
Someca
350DT , 466 , 466DT , 500DT , 566 , 570 , 580 , 650 , 666 , 670 , 680 , 750 , 766 , 780 , 880 , 980
Winner
F100 , F100Dal , F100Fino , F110 , F115 , F120 , F130 , F140
T4
T4.105 V , T4.65 V , T4.75 V/N/F , T4.85 V/N/F , T4.90F , T4.95 V
T4000N
T4030N , T4040N , T4050N , T4060N
T4000V
T4020V , T4030V , T4040V , T4050V , T4060V
TDD
TD75D , TD80D , TD80D Plus , TD90D , TD90D Plus , TD95D , TD95D Plus
TNN
TN65N , TN75N
TNNA
TN70NA , TN75NA , TN95NA
TNV
TN55V , TN65V , TN75V
TNVA
TN60VA , TN70VA , TN75VA , TN95VA
30
3830 (2WD) , 4030 (2WD) , 4230 (2WD) , 4430 (2WD)
35
3435 (2WD) , 3935 (2WD) , 4135 (2WD)
