Pasador de horquilla ø 19.8 mm L158186 recambio agrícola

Bulón de horquilla inferior 20 x 82 mm para tractores john deere l158186

Name: Bulón de horquilla inferior 20 x 82 mm para tractores john deere l158186
Brand: Alternativa Agrícola
SKU: ATH50639972
Price: 9.24 EUR
Availability: InStock

Referencia: ATH50639972

9,24 €

IVA inc.

Bulón de horquilla inferior para tensor vertical del elevador, usado en tractores John Deere. Su función principal es asegurar la articulación del conjunto de enganche y trabaja con un diámetro aproximado de 19,8-20 mm.

Referencia: ATH26/758-27, AL78854, JXL158186, L158186, 50639972

TODAS NUESTRAS OPCIONES DE PAGO...

Paga tu compra en cómodos plazos

Transferencia Bancaria

Pago con Paypal de manera segura

Pago 100% Seguro con Tarjeta y Bizum

Págalo a tu manera
en 3, 6 o 18 meses

Quiero saber como funciona

Detalles del producto

Característica	Valor
Peso (Kg)	0.33

Ubi: A6/A02 *

Descripción

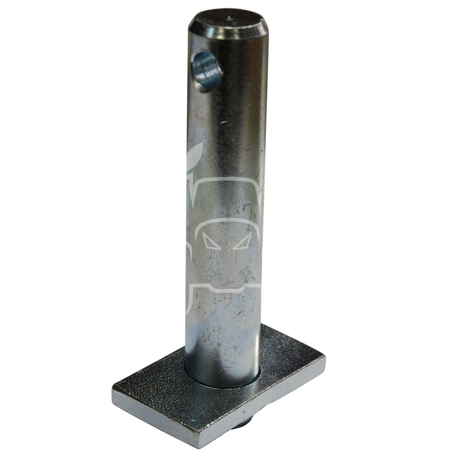

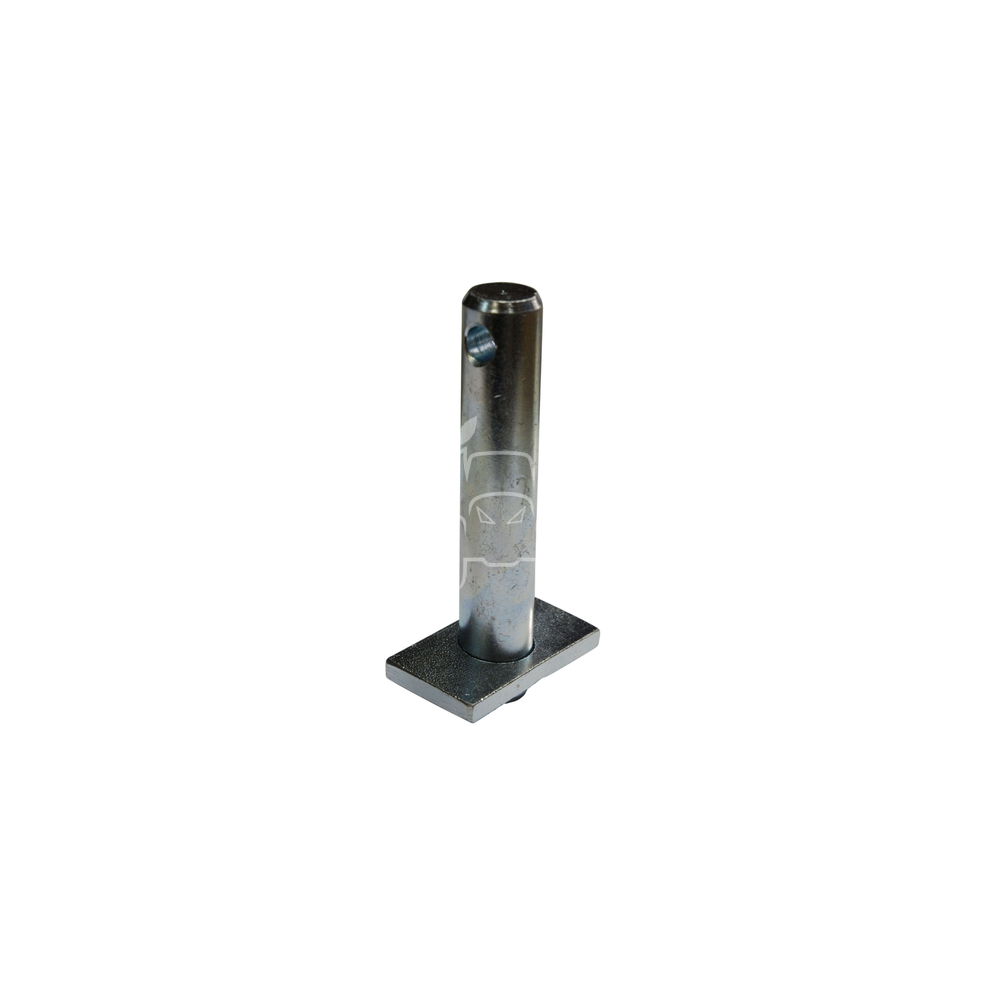

Bulón metálico de fijación para la horquilla inferior del tensor vertical del elevador. Presenta unas dimensiones aproximadas de 20 x 82 mm y un diámetro nominal de 19,8 mm. Está diseñado para trabajar como elemento de unión y bloqueo en articulaciones del sistema de elevación, permitiendo el giro controlado de la horquilla y manteniendo el posicionamiento del conjunto. Se suministra como pieza individual y su peso aproximado es de 0,31 kg.

John Deere - Tractor

04 (China)
1054 (China), 1204 (China), 1404 (China), 904 (China)

50
1950 (Espana), 1950 (Europe), 1950N (Europe)

5020
5620 (Europe), 5720 (Europe), 5820 (Europe)

5E
5090E (Worldwide), 5100E (North America)

5M
5075M (Europe), 5075M (North America), 5090M (Europe), 5090M (North America), 5100M (Europe), 5100M (North America), 5100MH (North America), 5100ML (North America), 5105M (North America), 5105ML (North America), 5105R, 5115M FT4 (North America), 5115M iT4 (Europe), 5115M iT4 (North America), 5115ML FT4 (North America), 5115ML iT4 (North America), 5125M (North America), 5125ML

5R
5080R (Europe), 5080RN (Europe), 5090R (Europe), 5090R (North America), 5090RN (Europe), 5100R (Europe), 5100R (North America), 5100RN (Europe), 5115R (Europe), 5115R (North America), 5115RH, 5125R (Europe), 5125R (North America)

6000
6100 (Europe), 6100SE (Europe), 6200 (Europe), 6200 (North America), 6200L (North America), 6200SE (Europe), 6300 (Europe), 6300 (South America), 6300L (North America), 6300SE (Europe), 6400 (Europe), 6400L (North America), 6400SE (Europe), 6400SP (Mexico), 6500 (North America), 6500 (South America), 6500L (North America), 6506 (Europe), 6600 (Europe), 6600 (South America)

6003
6403 (Mexico, South Africa, Asia, 6403 (North America), 6603 (Mexico, S.Africa & Asia), 6603 (Mexico, S.Africa & Asia), 6603 (North America)

6005
6205 (Europe), 6215 (Europe), 6225 (Europe), 6325 (Europe), 6405 (North America), 6405 (South America), 6415, 6415 (North America), 6415 (South America), 6415 Classic (South America), 6425 (Europe), 6425 (Mexico), 6505 (Europe), 6515 (Europe), 6525 (Europe), 6605 (North America), 6605 (South America), 6615 (North America), 6615 (South America), 6615 Classic (South America), 6715 (North America)

6010
6010 (Europe), 6010SE (Europe), 6110 (Europe), 6110 (North America), 6110L (North America), 6110SE (Europe), 6210 (Europe), 6210 (North America), 6210L (North America), 6210SE (Europe), 6310 (Europe), 6310 (North America), 6310L (North America), 6310S (North America), 6310SE (Europe), 6410 (Europe), 6410 (North America), 6410L (North America), 6410S (North America), 6410SE (Europe), 6510 (Europe), 6510L (North America), 6510S (North America), 6510SE (Europe), 6610 (Europe), 6610SE (Europe)

6015
6415 (Venezuela), 6615 (Venezuela)

6020
6020 (Europe), 6020S (Europe), 6020SE (Europe), 6120 (Europe), 6120L (North America), 6120SE (Europe), 6220 (Europe), 6220L (North America), 6220SE (Europe), 6320 (Europe), 6320L (North America), 6320SE (Europe), 6420 (Europe), 6420L (North America), 6420S (Europe), 6420SE (Europe), 6520 (Europe), 6520L (North America), 6520SE (Europe), 6620 (Europe), 6620SE (Europe)

6030
6130 (Europe), 6230 (Europe), 6230 (North America), 6230PR (Europe), 6230PR (North America), 6330 (Europe), 6330 (North America), 6330PR (Europe), 6330PR (North America), 6430 (Europe), 6430 (North America), 6430PR (Europe), 6430PR (North America), 6530 (Europe), 6534 (Europe)

6A (China)
6A-1104 (China), 6A-1204 (China), 6A-1354 (China)

6B
6095B (China), 6095B (Russia and Asia), 6100B (China), 6110B (China), 6110B (Russia & Asia), 6120B (Asia), 6135B (Russia and Asia), 6140B (Asia), 6B-1104 (China Edition), 6B-1204 (China Edition), 6B-1354 (China Edition), 6B-1404 (China Edition), 6B-954 (China Edition)

6D
6100D (Worldwide), 6105D iT4 (North America), 6110D (Worldwide), 6115D (Worldwide), 6115D iT4 (North Amercica), 6125D (Worldwide), 6130D (Worldwide), 6130D iT4 (North America), 6140D (Worldwide), 6140D iT4 (North America)

6E
6100E (South America), 6105E FT4 (Worldwide), 6110E (South America), 6120E FT4 (Worldwide), 6125E (South America), 6135E FT4 (Worldwide), 6E-1004 (China), 6E-1204 (China), 6E-1204P (China), 6E-1404 (China), 6E-1404 L (China), 6E-1404 P (China), 6E-1404 PL (China)

6J
6100J (South America), 6105J (Mexico), 6110J (South America), 6115J (South America), 6125J (South America), 6130J (South America), 6135J (South America)

6M
6090MC (Europe), 6095MC (Europe), 6100MC (Europe), 6105M (Europe), 6105M (North America), 6105MC (Europe), 6110M (Europe), 6110M (North America), 6110MC (Europe), 6115M (Europe), 6115M (North America), 6115MC (Europe), 6120M (Europe), 6120M (North America), 6125M (Europe), 6125M (North America), 6130M (Europe), 6130M (North America), 6135M (Europe), 6140M (Europe), 6140M (North America), 6145M (Europe), 6145M (North America)

6R
110 (North America Edition), 110 (UE Edition), 120 (North America Edition), 120 (UE Edition), 130 (North America Edition), 130 (UE Edition), 140 (North America Edition), 140 (UE Edition), 150 (North America Edition), 150 (UE Edition), 6105R (Europe), 6105R (North America), 6110R (Europe), 6110R (North America), 6115R (Europe), 6115R (North America), 6120R (Europe), 6120R (North America), 6125R (Europe), 6125R (North America), 6130R (Europe), 6130R (North America)

6RC
6090RC (Europe), 6095RC (Europe), 6100RC (Europe), 6105RC (Europe), 6110RC (Europe), 6115RC (Europe)

7020
7220 (Worldwide), 7320 (Worldwide)

7030
7130 (North America), 7130PR (North America), 7230 (North America), 7230PR (North America)

5000M,5M
5075M, 5075M (Americano), 5090M, 5090M (North America), 5100M, 5105M, 5100M (Americano), 5100MH (Americano), 5100ML (North America), 5105M (Americano), 5105ML (Americano), 5105R, 5115M FT4 (Americano), 5115M iT4, 5115M iT4 (Americano), 5115ML FT4 (North America), 5115ML iT4 (North America), 5125M (North America), 5125ML

5000R-RN-E,5R
5080R, 5080RN, 5090R, 5090R (North America), 5090RN, 5100R, 5100R (North America), 5100RN, 5115R (Europe), 5115R (North America), 5115RH, 5125R (Europe), 5125R (North America)
